Mitochondriak® Advanced red light panel: 1,200 LEDs, 7 wavelengths and Mitochondriak Lab measurements

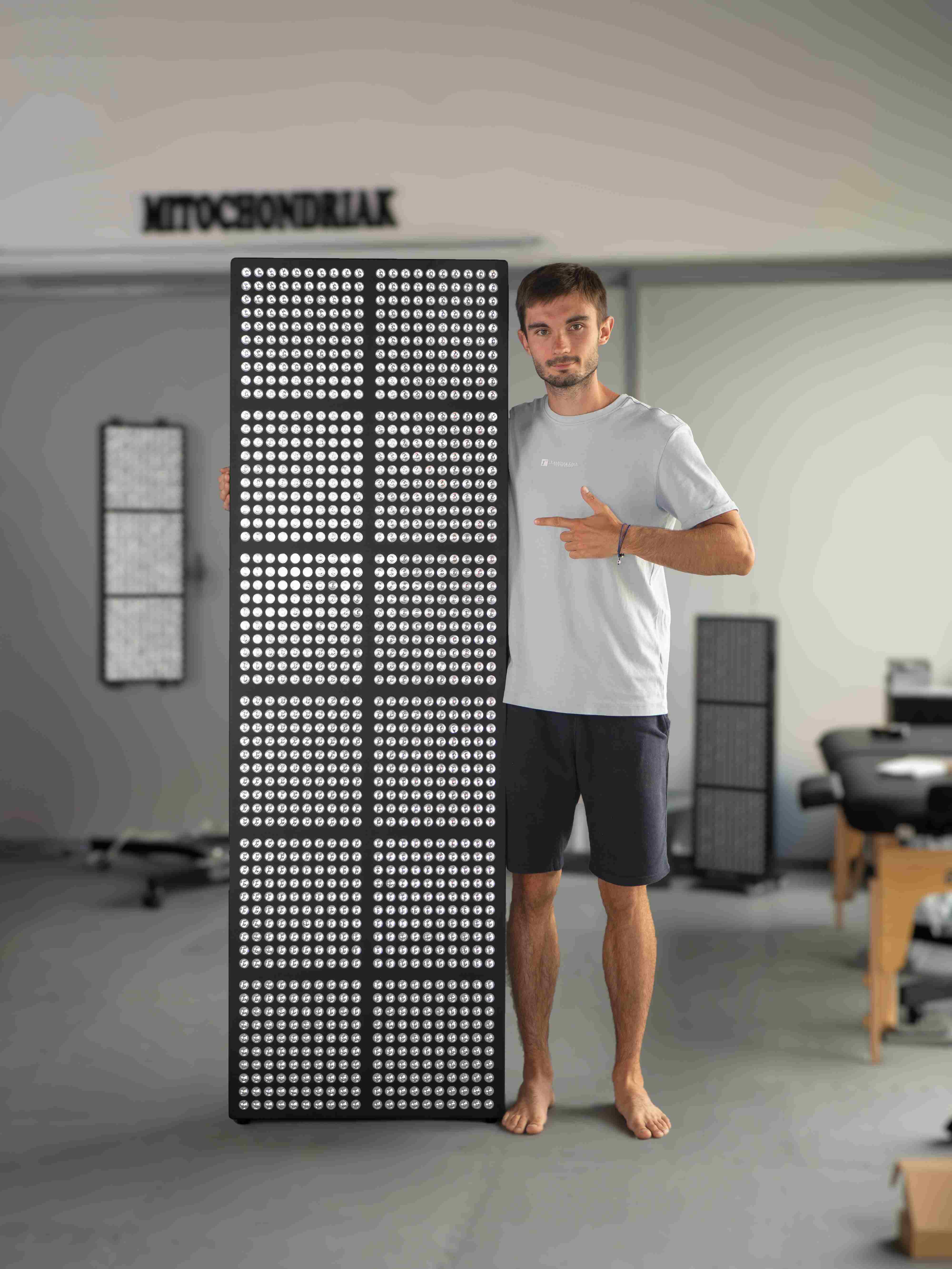

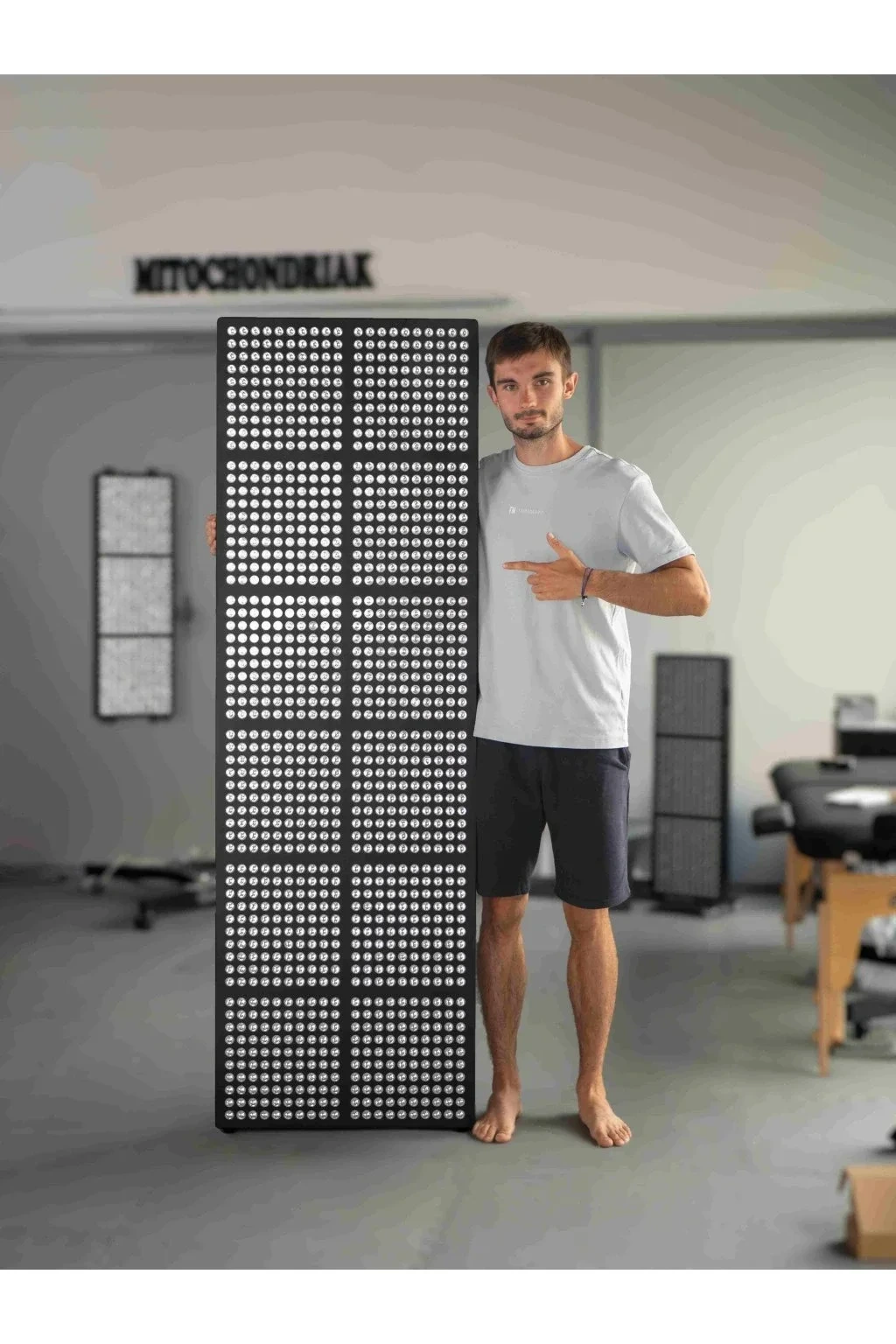

How much light actually reaches your skin? With the Mitochondriak® Advanced we don't guess, we measure. The Mitochondriak® Advanced is our largest full-body panel: 180 × 60 cm and 1,200 LEDs. It is designed for gyms, physiotherapy and wellness businesses as well as advanced biohackers who want to cover the whole body at once.
.jpg)
What makes the Mitochondriak® Advanced special?
6 key features based on verified parameters and the Mitochondriak Lab measurement.
7 wavelengths
630 to 940 nm: red and near-infrared, including 760 and 940 nm.
Intensity from the spectrometer
65.7 mW/cm² at the recommended 50 cm, 78.6 mW/cm² at 30 cm. On the solar meter 101.2 and 130.6 mW/cm².
Zero flicker, background-level EMF
Flicker index 0.00, fluctuation 1.1 to 2.1%, like sunlight. Magnetic field 0.1 µT at 30 cm.
Optional pulsation
Off or 0 to 10,000 Hz, including decimals, separately for RED and NIR.
Display and programs
Goal-based programs and your own saved settings. RED and NIR intensity separately from 0 to 100%.
Full-body coverage

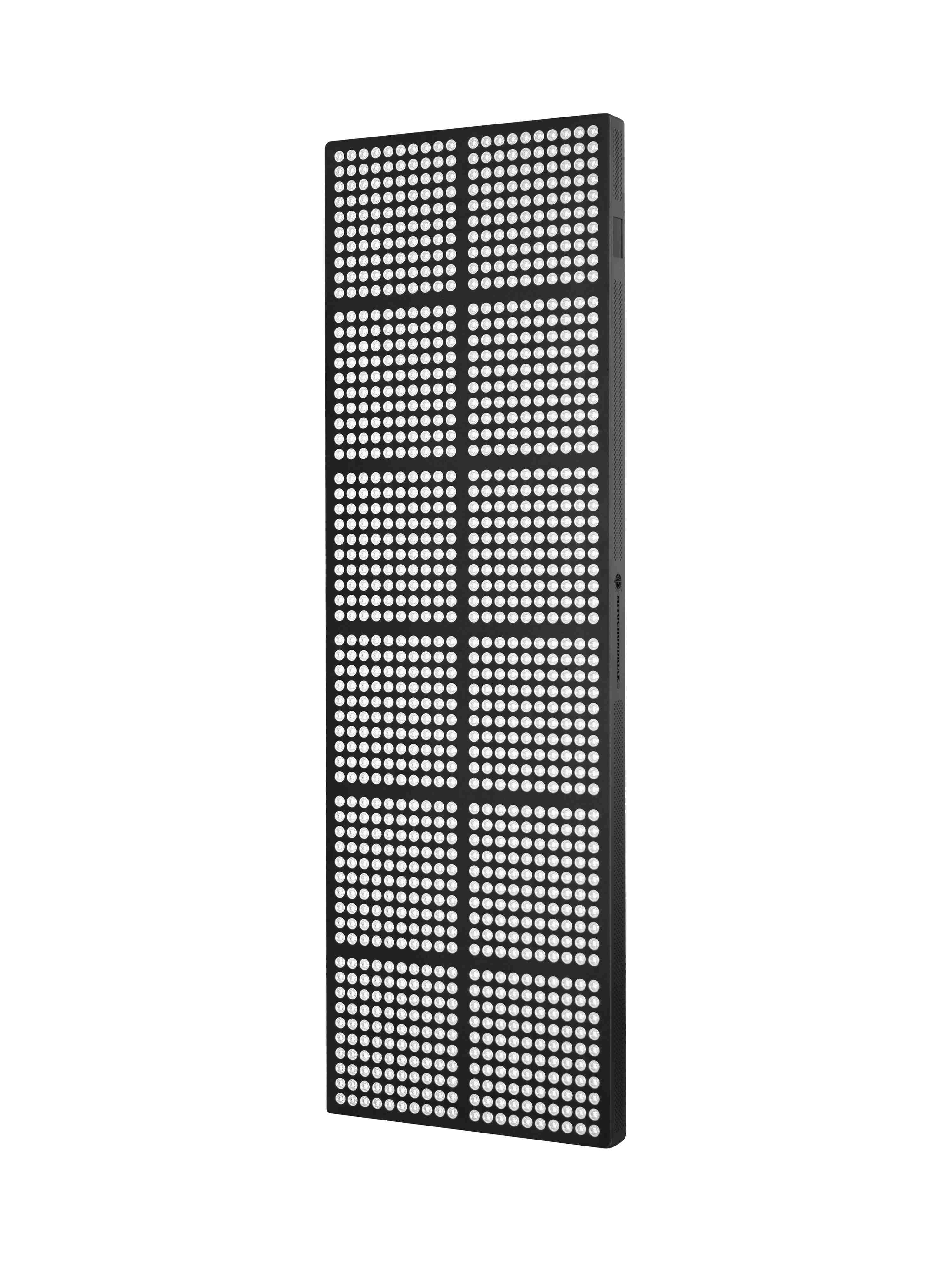

180 × 60 cm and 1,200 LEDs for wide, even illumination of the whole body.

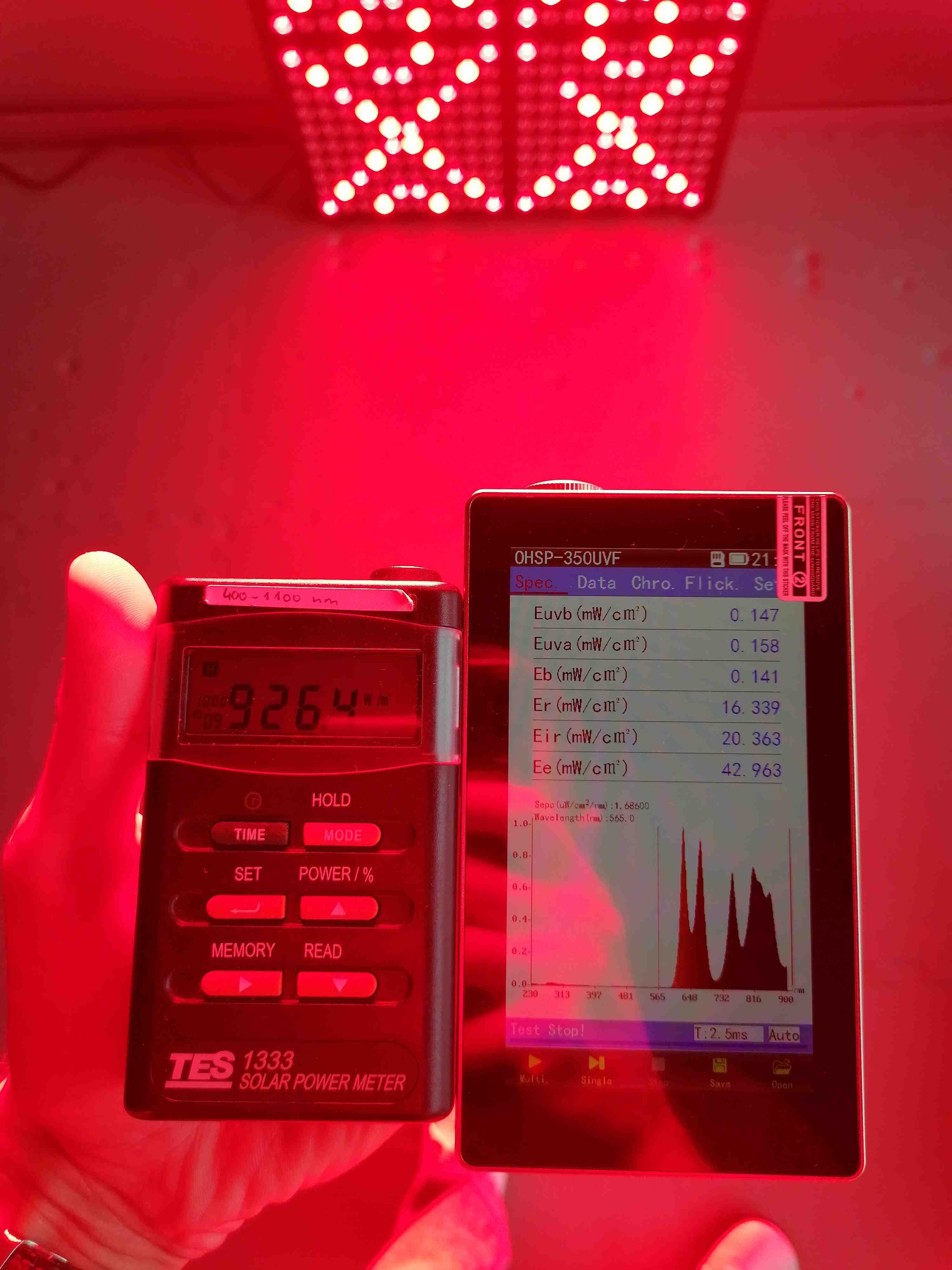

We don't guess, we measure. As a Slovak manufacturer, we measured the Mitochondriak® Advanced panel on 29 October 2026 in Mitochondriak Lab with two certified spectrometers, a solar meter and EMF meters, including flicker and pulsation. We measured at 30, 50 and 70 cm. The recommended distance is 50 to 60 cm. 30 cm is the reference point at which intensity is usually stated on the market.
- At 50 cm (recommended distance): 65.7 mW/cm² from the spectrometers, 101.2 mW/cm² on the solar meter
- At 30 cm (market reference point): 78.6 mW/cm² from the spectrometers, 130.6 mW/cm² on the solar meter
- At 50 cm red 23.3 mW/cm² and near-infrared 42.4 mW/cm², of which the 940 nm band 13.5 mW/cm²
- Flicker: zero flicker, fluctuation 1.1 to 2.1%, flicker index 0.00
- EMF: magnetic field 0.1 µT at 30 cm – background level, electric field 0 V/m
Why two numbers? A solar meter is calibrated to sunlight and shows more than the spectrometers for narrow LED bands, and it also sees the 940 nm band. Most sellers only quote the solar meter. We quote both: the solar meter for comparison with the market and the spectrometers as the real spectral intensity.
For comparison: on 29 October 2026 at around 3 pm, the same solar meter measured 91.6 mW/cm² in direct sunlight. In the red and near-infrared range (600–1,100 nm) that is about 56.5 mW/cm², and at 50 cm the Mitochondriak® Advanced delivers 116% of this dose (calculated from the measurement), without UV or blue light.

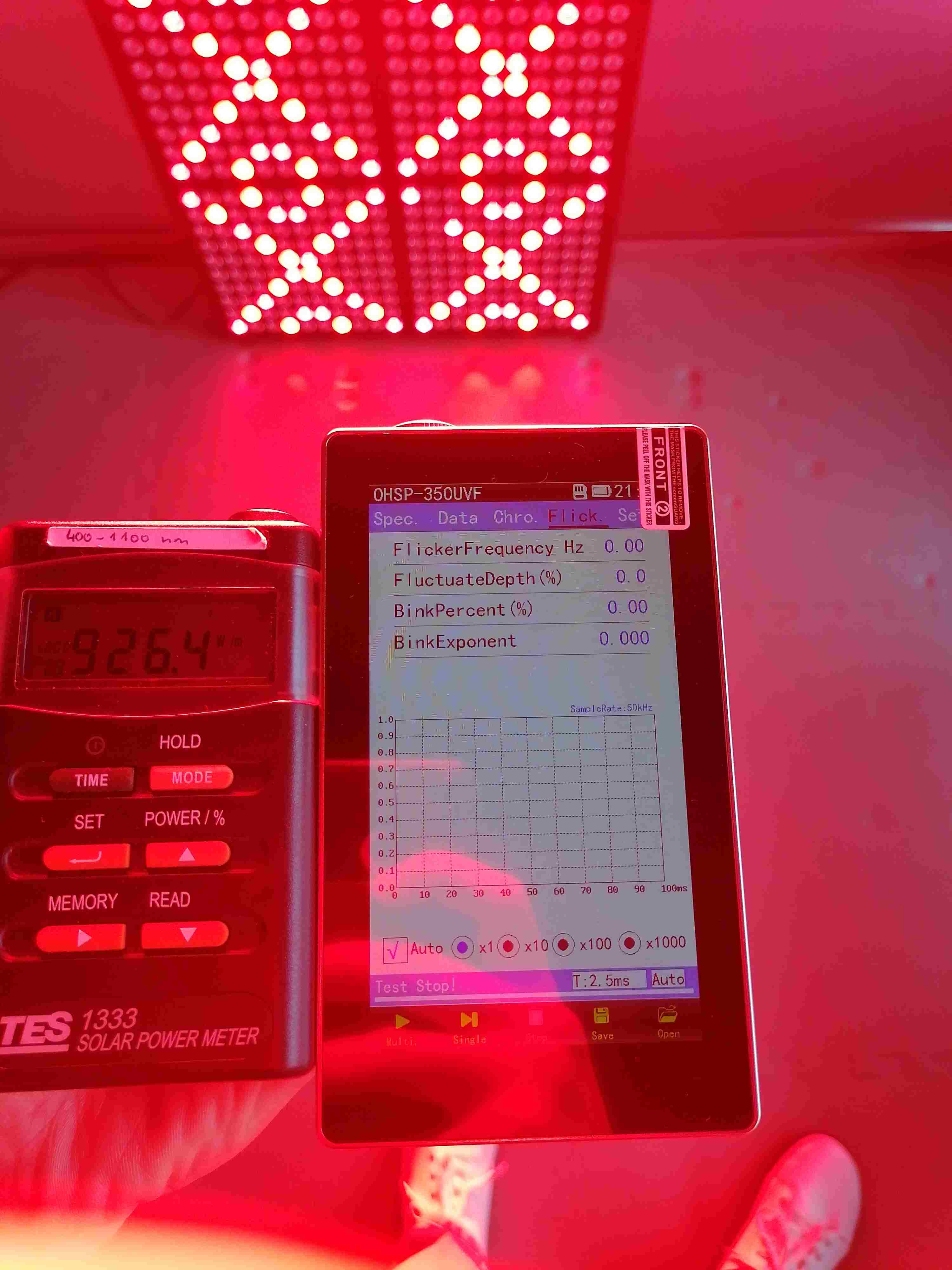

Zero flicker: Our panels really do not flicker. Measurements with two independent certified spectrometers confirm it (see the measurement photos and the protocol). The percentage fluctuation is 1.1 to 2.1%, a very small fluctuation, similar to sunlight, and the flicker index is 0.00. The UPRtek CV600 shows a frequency of 1 Hz because it cannot display zero; the OHSP-350UVF displays 0. Behind this is the quality of the drivers, which we tested and selected repeatedly.
Pulsation is optional. You can switch it off or set any value from 0 to 10,000 Hz, including decimals, separately for RED and NIR. At 10 Hz (the frequency of alpha waves) and 100 Hz we measured a fluctuation of 96 to 100% and an index of 0.46 to 0.47: the LEDs really switch on and off (PWM), so the average intensity is about half. It is an option for those who want to work with the frequency of light.
Why so many? The sun does not shine in a single colour. In the morning and evening it brings mainly red and near-infrared light, and each wavelength reaches a different tissue depth. That is why the Advanced combines 7 LED types in the red and near-infrared range, so the energy of light gets to where the mitochondria work.

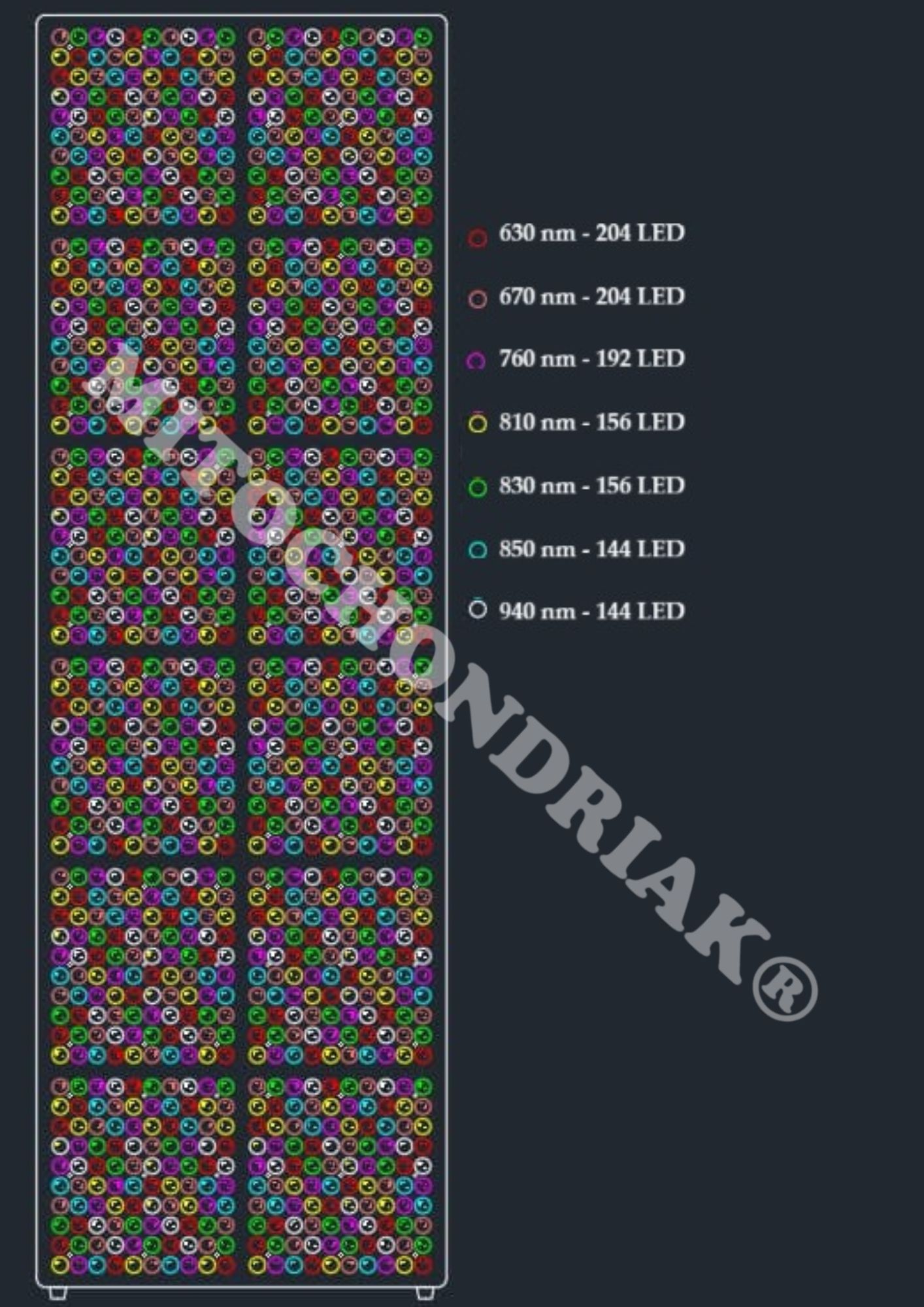

The LEDs are not distributed 1 : 1. We chose the ratio of LED types according to the biological effectiveness of each wavelength, so some bands overlap in the spectrum and have no separate peak. All 7 LED types (630, 670, 760, 810, 830, 850 and 940 nm) still shine together in the panel.
RED (red light): 630, 670 nm
- Supports mitochondria and the production of cellular energy (ATP).
- Supports skin regeneration and collagen production.
- Penetrates from a few millimetres to centimetres deep.
NIR (near-infrared): 760, 810, 830, 850, 940 nm
- Penetrates deeper into tissues, to muscles and joints (a few cm).
- Supports muscle and joint recovery after exercise.
- Supports evening relaxation and overall well-being.
The recommended distance is 50 to 60 cm or more. The Advanced covers the whole body at once.
- Start with 2 to 5 minutes and increase the time gradually.
- Surface areas (skin and complexion): 5 to 10 minutes.
- Deeper areas (muscles, joints, back, abdomen): 10 to 30 minutes.
- Use it 3 to 7 days a week, unless it is a specific, individual issue, ideally in the morning or after training.
- Keep your eyes closed or wear protective glasses during the session.
- Pulsation is optional. With pulsation the average intensity is about half, so you can extend the time accordingly.

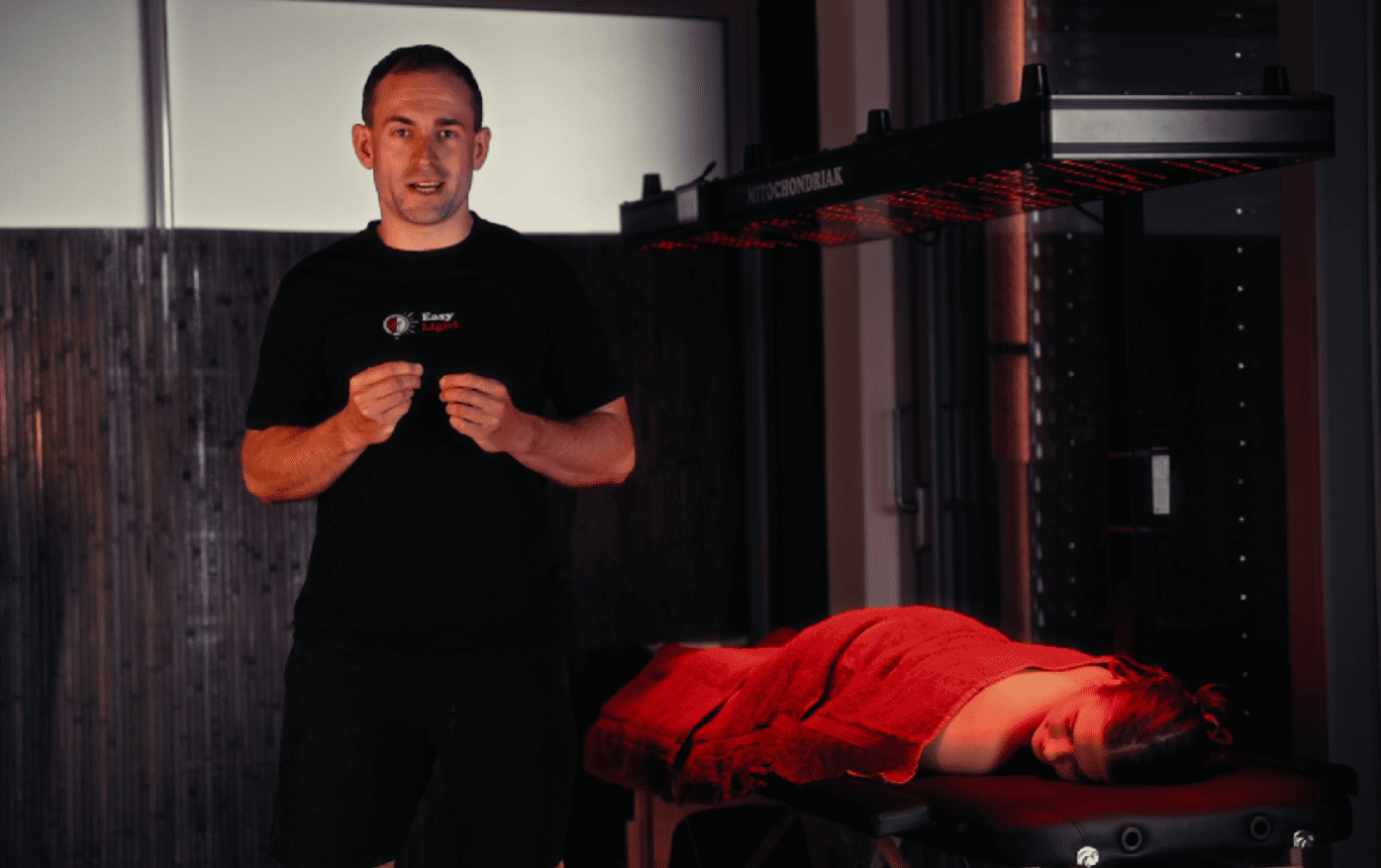

Setup: place the panel on a flat, stable surface and anchor it with the supplied accessories, or use an adjustable stand for horizontal and vertical use.
Silent mode: switch off the tap sound in the function settings with the "volume" button.
Remember one thing: better regularly and from 50 to 60 cm than rarely and up close.
Why choose our new Mitochondriak® devices with a touch display?
1. New touch screen = advanced functions and settings:
Everything is controlled intuitively by tapping or swiping on the touch display.
2. We think of you and make your sessions easier.
We have preset programs on the display according to your goal (e.g. "skin", "sleep", "recovery") and you can also choose and save your own programs:

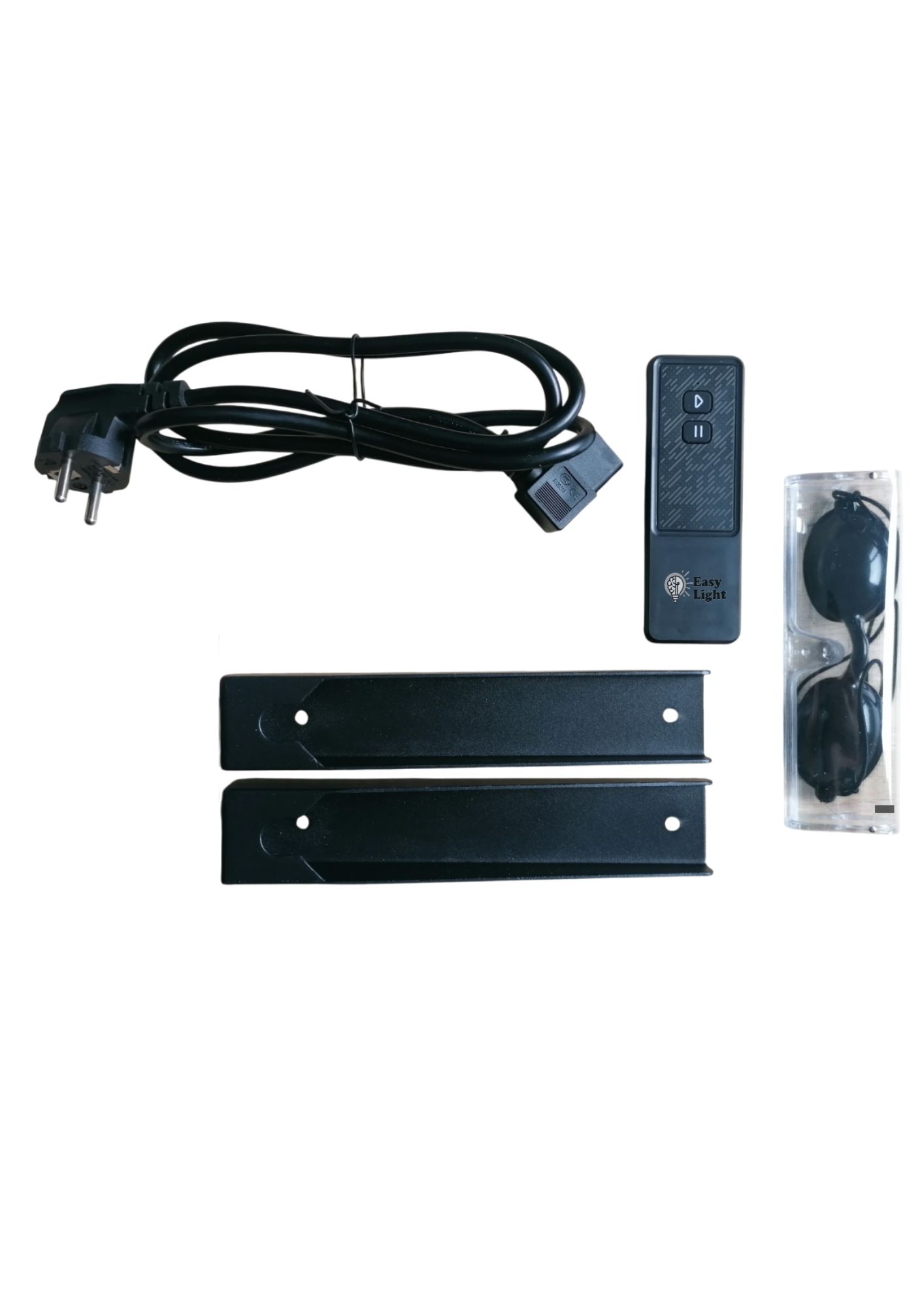

What's in the box: Mitochondriak® Advanced
In the box you will find:
- Mitochondriak® Advanced panel
- power cable
- protective glasses
- remote control
- accessories for anchoring the device to the floor with screws
- user manual
| Feature | Mitochondriak® Advanced | Common competing products on the market |
|---|---|---|
| Wavelengths | ✓ 7 wavelengths 630 to 940 nm, LEDs in a ratio based on biological effectiveness | × Often 2 to 4 often a 1 : 1 layout |
| Verified measurements | ✓ Spectrometers and solar meter flicker, pulsation and EMF measured in Mitochondriak Lab | × Often only a solar meter |
| Area and number of LEDs | ✓ 180 × 60 cm, 1,200 LEDs the whole body at once | × Often a smaller area |
| Intensity and pulsation | ✓ 0 to 100%, 0 to 10,000 Hz RED and NIR separately, decimal Hz too | × Often not stated |
| Flicker and EMF | ✓ Zero flicker flicker index 0.00, EMF at background level | × Not a given check the product |
| 30 days to try | ✓ Yes Return conditions | × Check the product |
Certification and safety
The device meets CE, RoHS standards. You will find certification documents and safety markings on a separate certification page.
View certification30 days to try
You can try the product at home for 30 days. If it does not suit you, you can return undamaged goods in the original packaging with all accessories according to the shop's terms.
How returns work
Additional parameters
| Category: | Red light therapy |
|---|---|
| Warranty: | 2 years |
| Weight: | 50 kg |
| EAN: | 0726529982091 |
| Model: | Mitochondriak® Advanced (new generation) |
| Wavelengths: | 7 LED types: 630, 670, 760, 810, 830, 850 and 940 nm |
| LED distribution: | in a ratio based on biological effectiveness, not 1 : 1; some bands overlap in the spectrum |
| ? Recommended distance: | 50 to 60 cm (or more) |
| ? Total intensity at 50 cm – recommended distance (measured): | 65.7 mW/cm² spectrometers (400–1,100 nm), 101.2 mW/cm² TES 1333 solar meter (1,012 W/m²) |
| ? Total intensity at 30 cm – market reference point (measured): | 78.6 mW/cm² spectrometers (400–1,100 nm), 130.6 mW/cm² TES 1333 solar meter (1,306 W/m²) |
| ? Total intensity at 70 cm (measured): | 56.2 mW/cm² spectrometers, 92.8 mW/cm² solar meter |
| ? Red light 600–700 nm (measured): | 23.3 mW/cm² at 50 cm (30 cm: 32.6, 70 cm: 20.2 mW/cm²) |
| ? Near-infrared light 700–1,100 nm (measured): | 42.4 mW/cm² at 50 cm (30 cm: 46.1, 70 cm: 36.0 mW/cm²) |
| ? 940 nm band (measured): | 13.5 mW/cm² at 50 cm (30 cm: 16.2, 70 cm: 11.6 mW/cm²) |
| ? RED : NIR ratio (measured): | 50 cm 35 : 65, 30 cm 41 : 59, 70 cm 36 : 64 |
| ? Average intensity with pulsation (measured): | ~33 mW/cm² at 50 cm (30 cm: ~39, 70 cm: ~28 mW/cm²) |
| ? Most pronounced spectral peaks (supplement): | 631, 671, 767, 820 and 833 nm (+ 940 nm band); the other LED types overlap |
| ? Flicker (measured): | zero flicker: fluctuation 1.1 to 2.1%, flicker index 0.00 (the UPRtek CV600 displays 1 Hz because it cannot show zero) |
| ? Pulsation (measured): | optional; at 10 and 100 Hz fluctuation 96–100%, index 0.46–0.47 – real switching on and off (PWM), average intensity about half |
| ? EMF – magnetic field (measured): | 0.1 µT (1 mG) at 30 cm – background level |
| ? EMF – electric field and radio-frequency radiation (measured): | electric field 0 V/m, radio-frequency radiation 0.0001 mW/m² – background level |
| Number of LEDs: | 1,200 pcs |
| Beam angle: | 30° |
| Power consumption: | 1,920 W |
| Rated power: | 3,600 W |
| Voltage: | AC 110–240 V |
| Frequency: | 50/60 Hz |
| Cooling fans: | 18 pcs |
| Modes: | Red and NIR switch on separately or together |
| Pulsation: | optional: off or 0–10,000 Hz including decimals, separately for Red and NIR |
| Intensity setting: | 0–100%, separately for Red and NIR |
| Control: | touch display, programs Muscle, Joint Pain, Sleep, Skin, Mood, Recovery and your own saved programs |
| Built-in timer: | yes, up to 30 minutes |
| Silent mode: | yes |
| Usage: | the whole body at once |
| Panel size: | 1800 × 600 × 65 mm |
| Weight: | 50 kg |
| Panel box size: | 200 × 70 × 17 cm |
| Material: | aluminium and metal |
| LED protection: | acrylic protective glass |
| Integrated carrying handles: | yes, built into the back |
| Mounting: | anchoring screws included, adjustable stand optional |
| Package contents: | panel, power cable, protective glasses, remote control, anchoring accessories, user manual |
| LED lifespan: | 50,000 hours (137 years at 60 minutes a day) |
| Warranty: | 2 years |
| Certificates: | CE, RoHS |
| ? Measurement: | Mitochondriak Lab, 29 October 2026; 30, 50 and 70 cm from the front of the panel |
